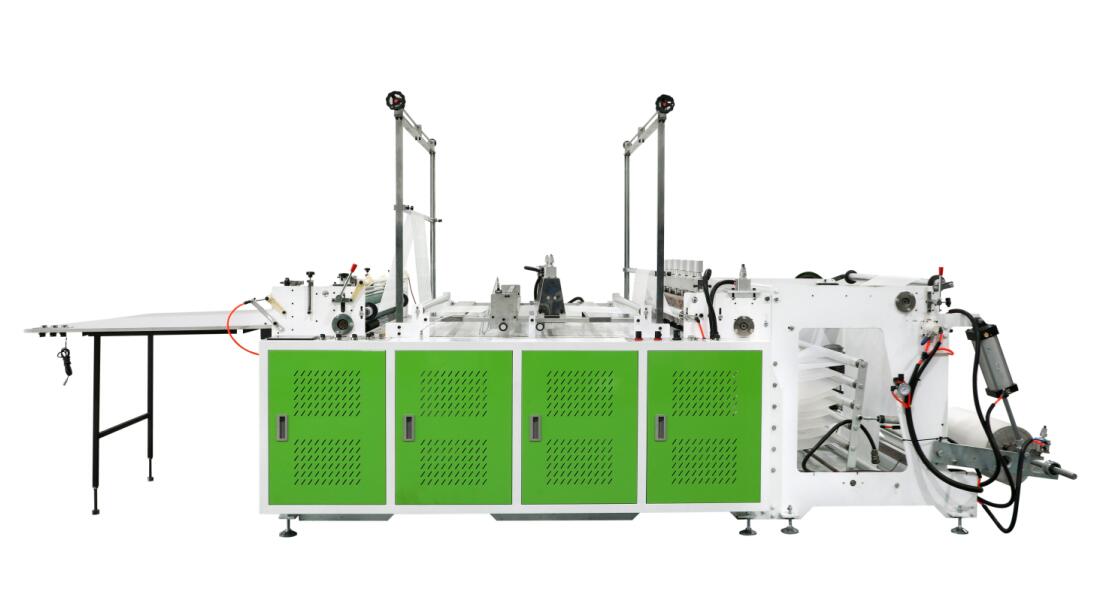

DLQ-600/800/1000/1200C Heavy Duty 3-4 Servo Thicker Bag Making Machine
DLQ-600/800/1000/1200C Heavy Duty 3-4 Servo Thicker Bag Making Machine
DLQ-600/800/1000/1200C Heavy Duty 3-4 Servo Thicker Bag Making Machine
Categories: Bag Making Machine
Tel: 0086 577-66817170
Mobile: 0086 15858567170
Email: rahsjx@rahsjx.com
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.
CATALOGUE >
Product Details :


[1].Feature:

1) This machine fit for PE,PP blank or color bag cutting, such as tissue bag, towel bag, disaper bag out package bag,different kind of thicker bag.

2) Can add reinforce sheet function, handle hole puncher and weave line sealing device.

3) Automatic counting and alarming. With accurate photocell eye tracking ,stops automatically in case of wrong color marks.

3) Machine install heat welding blade, automatic take off film structure, when machine stop work, heat welding blade automatic take off from the film, avoid film melt off.

4) Photo-sensor can tracking color bag mark, keep same step with printing bag, and with computer setup length,bag length can be setup automatic by customer, easy operate.

5)This machine with pneumatic auto feeding system, double process sealing, auto counting, auto punching, stacking and alarming function.

[2] Main technical specification

Model

DLQ-600C

DLQ-1000C

Max. Bag width

100-550mm

100-950mm

Max. Bag length

200-1200mm

200-1200mm

Film thickness

0.01-0.4mm (standard)

0.01-0.4mm (standard)

Work line

1 line

1 Lline

Cutting precision

±0.5mm

±0.5mm

Bag making speed

10-100pcs/min(depend on bag length and thickness)

10-100pcs/min(depend on bag length and thickness)

Power supply

220V,50HZ,single phase

220V,50HZ,single phase

Main Motor

1.5KW

2.2KW

Heating Power

5KW

9KW

Weight of Machine

1200KGS

1400KG

Overall Dimensions

4.2×1.4×1.6M

4.2×1.8×1.6M

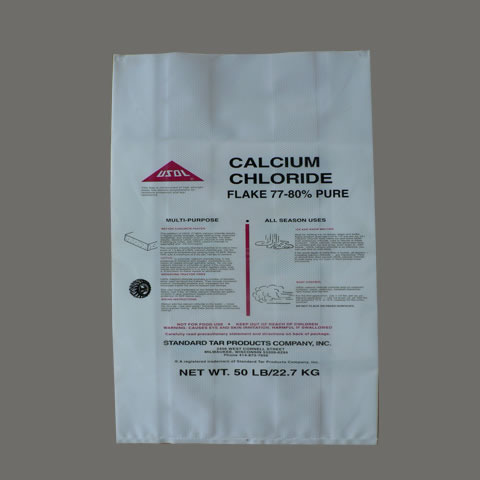

thicker bag product show
